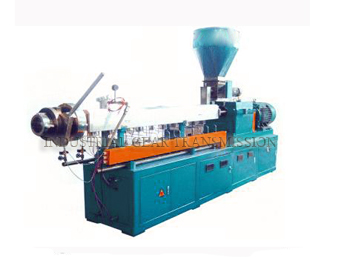

Co-rotating Twin-screw Extruder
Product Description:
This extruder has the special screw design and different configuration, it is suitable for the recycling and pelletizing of raw materials such as PP, PE ,PET ,PS, ABS, PA ,PVC with different colors. It is also speical for plastic compound filling masterbatch such as PP / PE+CaCo3.
Main technical parameter：
Main technical parameter：
|
Model |
20 |
30 |
35 |
50 |
65 |
72 |
92 |
|
Diameter of screw(mm) |
21.7 |
30 |
35.6 |
50.5 |
62.4 |
71.2 |
91 |
|
Screw rotate speed(rpm) |
600 |
400 |
400/600 |
500/600 |
400/500 |
400/500 |
400/500 |
|
Main motor power(kw) |
4 |
11 |
11/15 |
37/45 |
55/75 |
90/110 |
220/250 |
|
L/D ratio |
32-40 |
28-48 |
32-48 |
32-48 |
32-48 |
32-48 |
32-40 |
|
Production Capacity(kg/h) |
2-10 |
5-30 |
10-80 |
20-150 |
100-300 |
300-600 |
600-1000 |
